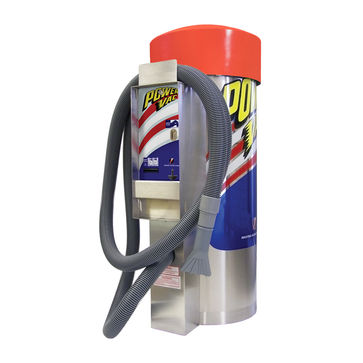

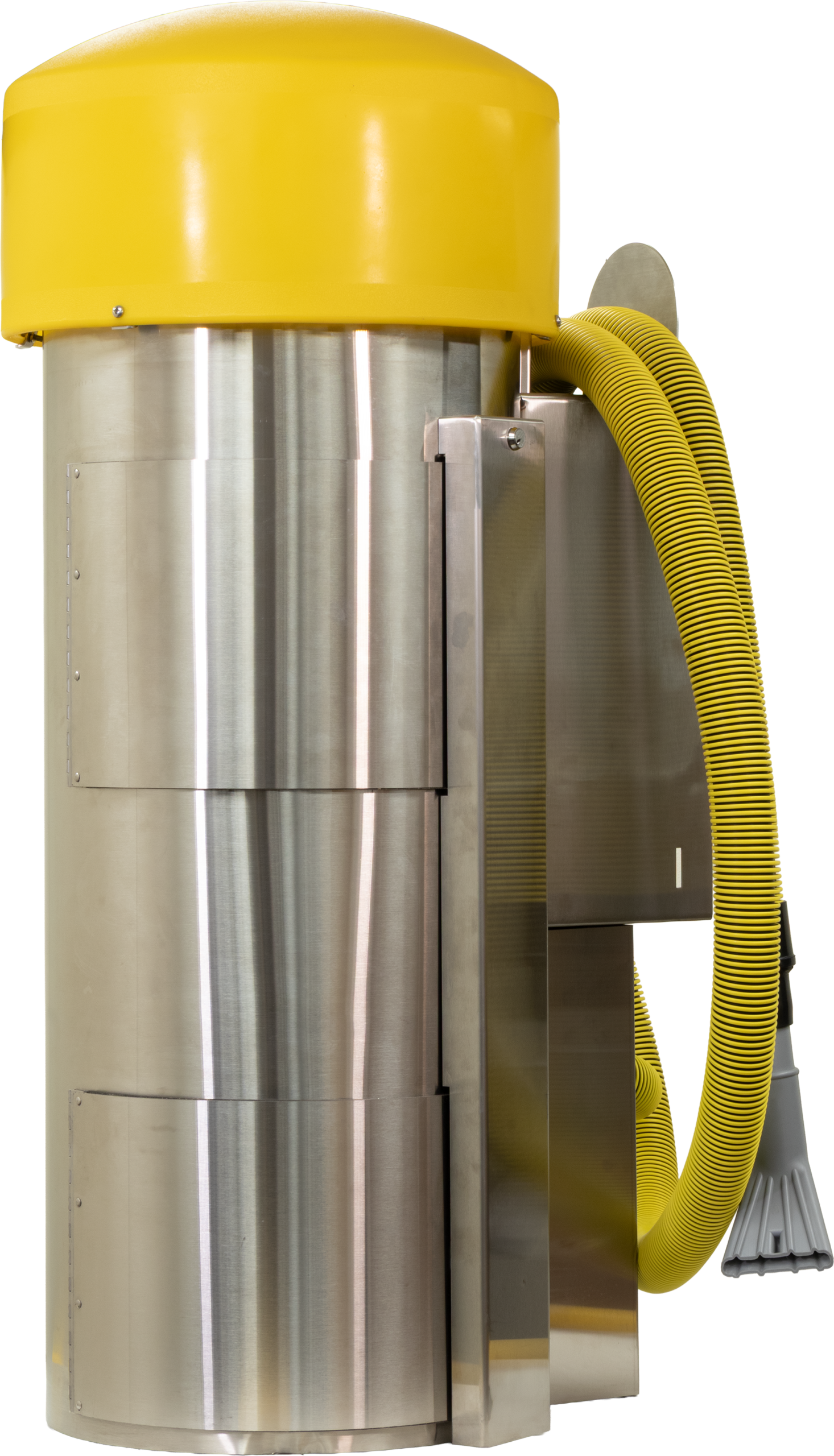

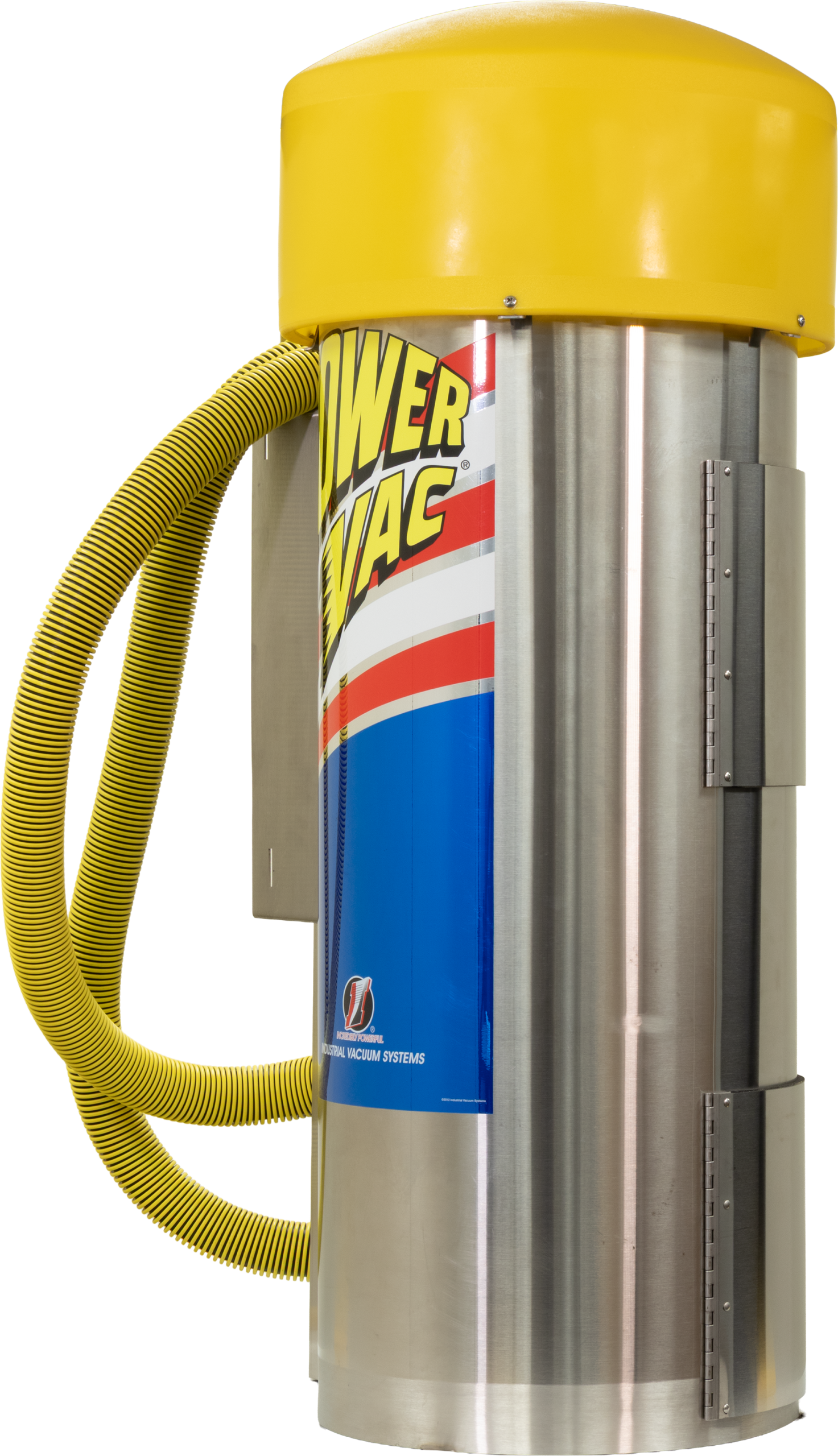

Power Vac 140000

Drawer Style Coin Box

Two Heavy Duty Long-Life Motors
Deliver maximum cleaning power and reliable performance

High-Capacity Filter System
Reduces maintenance intervals, saves you money

Superior Quality Timers
Timers from recognized manufactures with history in the car wash industry

High-Security Coin Vault
Hidden lock design to protect your profits.

Merchandising Power
Eye-catching graphics promote usage- Optional color-coordinated domes and decals draw even more attention to your vacuum service

Quick Links:

Downloads

Product Specifications

Options & Accessories

Acceptor Options

Dimensions

Downloads

Power Vac Brochure

Power Vac Installation and Owners Guide

Related Parts

Product Specifications

Airflow:
87 in. suction lift (water)

Electrical:
120 VAC, 20 amp circuit for 2 motors, 30 amp circuit for 3 motor option.

Motors:
Two 1 HP (max.) each, bypass cooled, 7.2 amps each, standard.

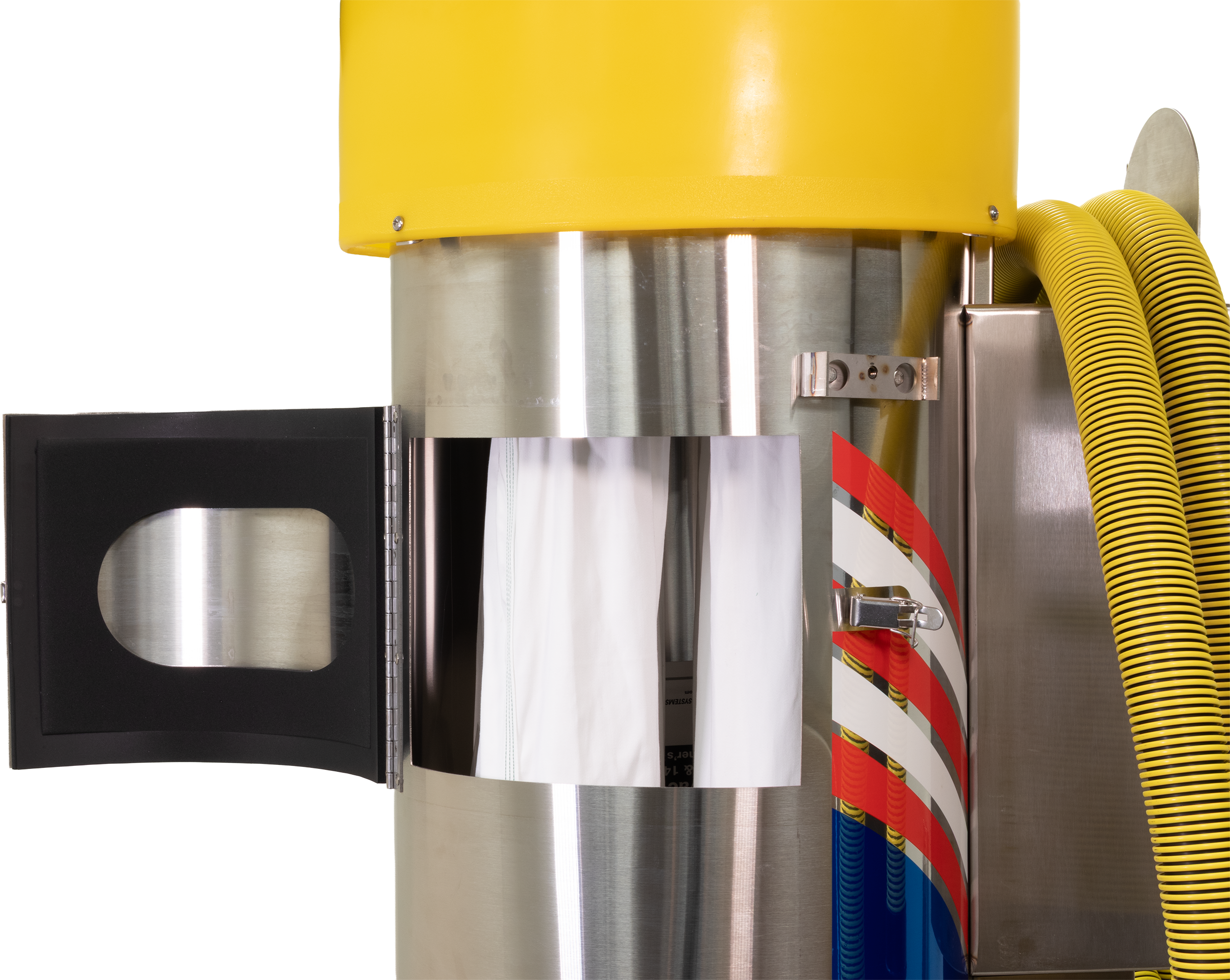

Filters:
Four bag system uses high performance napped synthetic filtration material, 15 sq. ft. effective filtration area and easy filter access service door.

Coin Mechanism:
Mechanical type, accepts U.S. quarters.

Electronic Timer:
Industry standard GS-403 timer.

Hose:
2 in. diameter x 15 ft. long, high flex crushable plastic, includes cuff and polyethylene hand tool.

304 Grade Stainless Steel Tank:
18 gauge, brushed finish, size: 42” (H) x 18.5” (D)

Mounting:
Three lugs for ½ in. bolts (concealed front bolt).

Dimensions:
Unit: 52 in. (H) x 20 in. (W) x 27 in. (D)

Dome Dimensions:
Stainless steel: 20 in. (OD) x 10.5 in. (H)

Polyethylene: 21.5 in. (OD) x 12 in. (H)

Unit Weight:
Net 105 lbs.

Shipping Dimensions: 29″ L x 25″ W x 57″ H 150lbs

Options & Accessories

Dome Options:
Stainless steel or lighted poly domes in blue, green, red, yellow and white.

Quiet kit

Finish Options:

Mirror finish

Graphics Options:
Optional colors for tank & stainless dome decals, blue, green, red, yellow, and white.

Custom graphics available.

Hose Options:
Colored 1-½ in. diameter hose in 15, 25 & 50 foot lengths.
Colored tapered (2 to 1-½ in.) hose, 15 foot length.

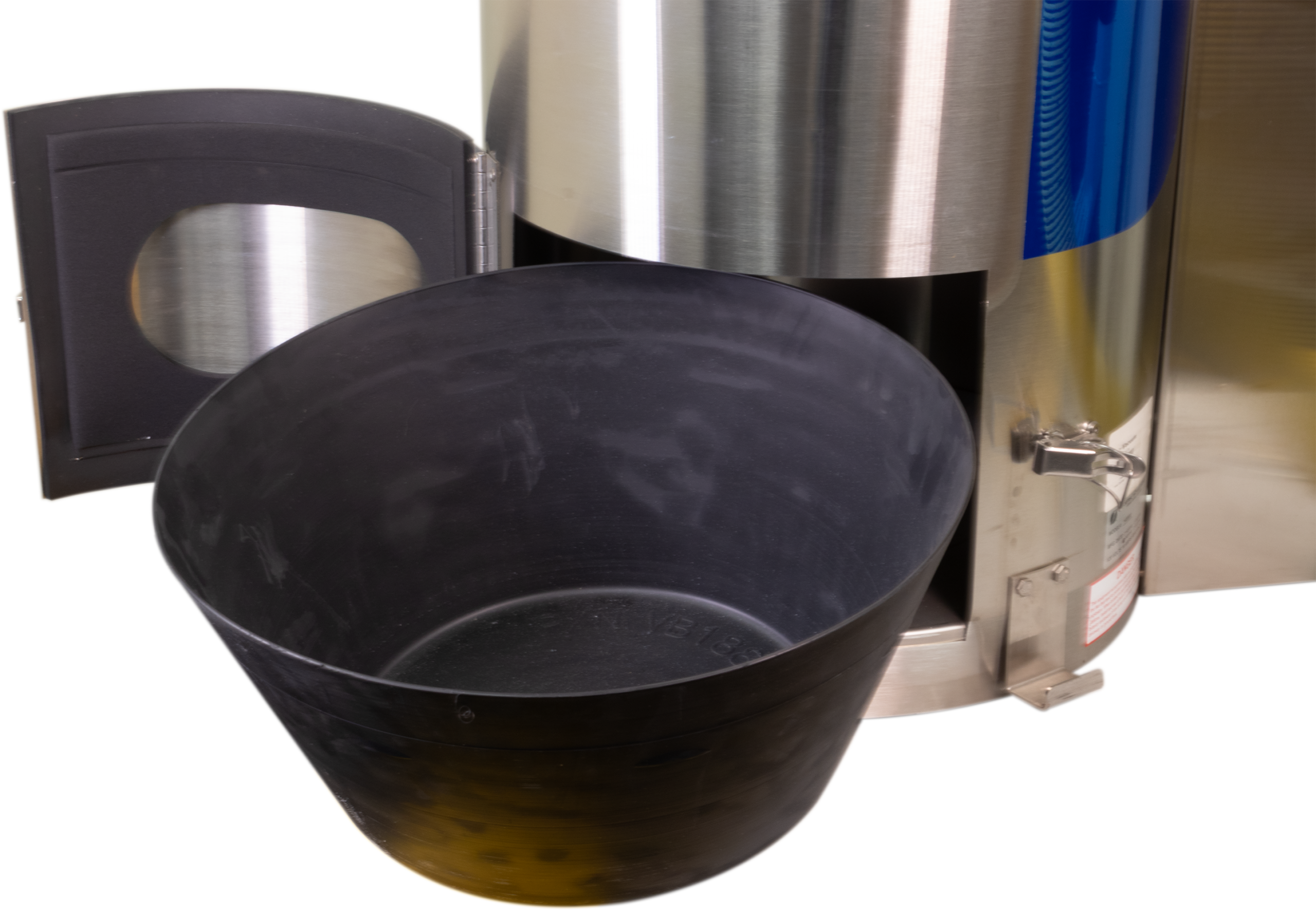

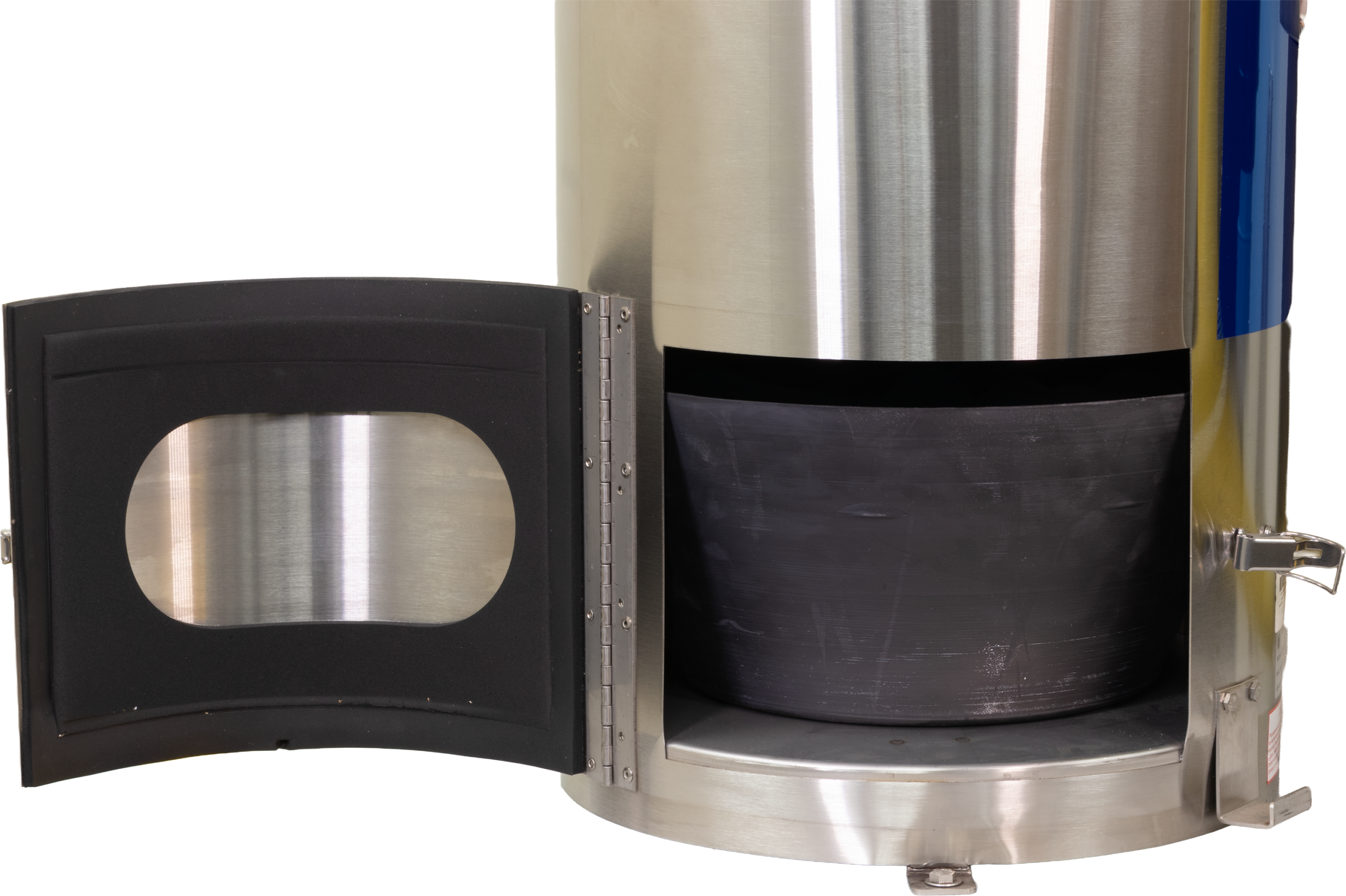

Clean-Out Door Options:
“Latch-less” clean-out doors

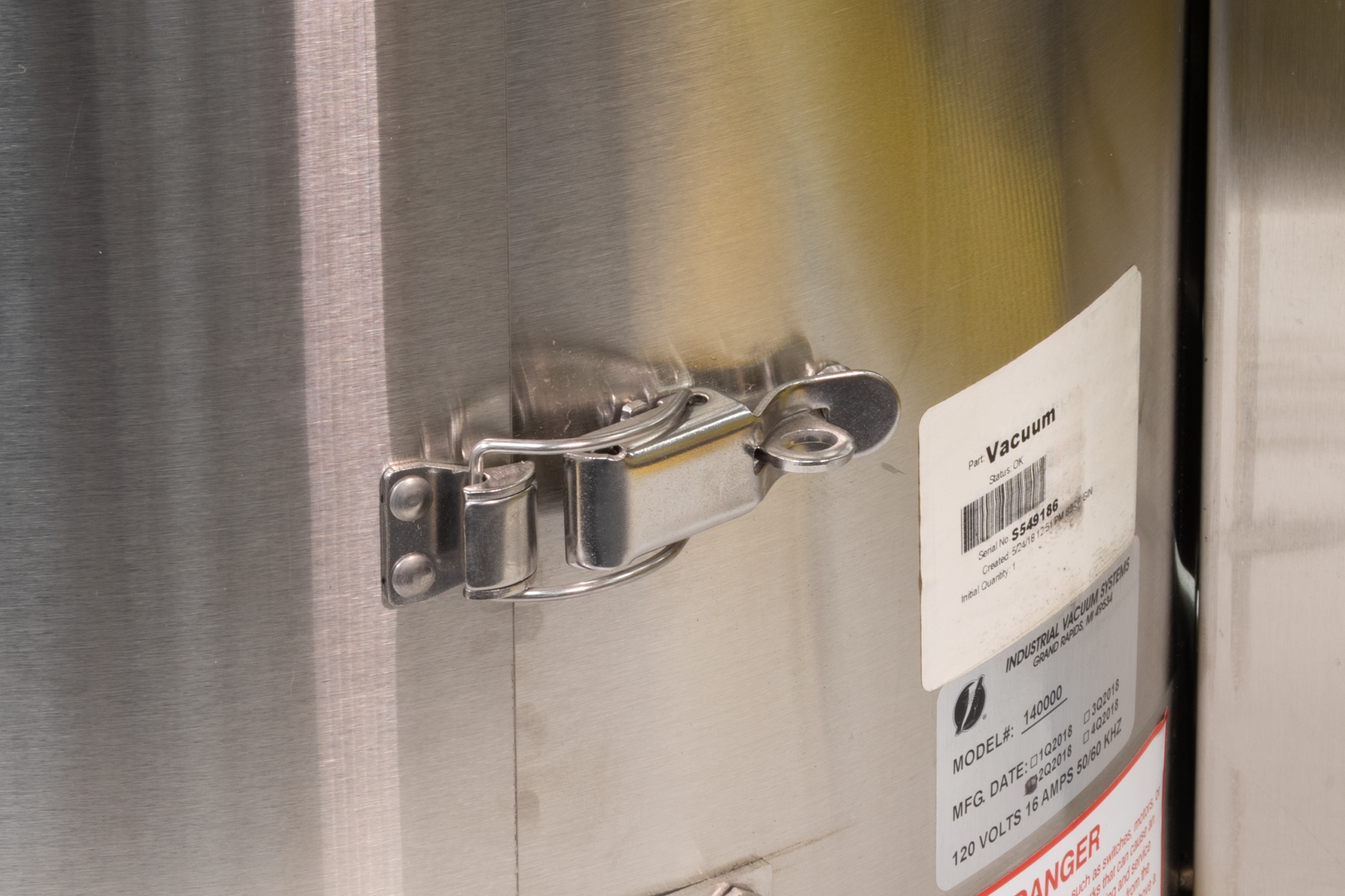

Latch security locking shroud

Lock Options:
Puck style, hidden shackle lock upgrade

Security bars

Motor Options:
Third motor upgrade
Quiet motor(s) upgrade
Special (export) voltage motors

Timer Options:
GinSan and Dixmor timers and displays.
Isolation relay set-ups

Payment Options:

Electronic coin acceptors, bill validators, and credit card readers.

Accessories:
Debris catchers

Acceptor Options

Multiple Coin/Token Acceptors

Talos Bill Acceptor

CryptoPay Credit Card System

High Polish Mirror Finish

Dimensions

Shipping Dimensions: 29″ L x 25″ W x 57″ H 150lbs
